Broadcast Encoding by

Limit 8

“Limit 8 consistently demonstrates service that puts my needs as a client first. I really enjoy working with Limit 8 and highly recommend their solutions for anyone needing sports capture. ”
— Andy Watts, Performance Analyst. Highlanders Super Rugby and Japan Rugby Football Union


Solutions




Sports analysis Encoding

Capture and encode directly into your chosen sports analysis platform. Compatible with the latest transport protocols at low latency. The MultiEncode range offers seamless remote access of your streams via built in IP routing.

3G/HD/SD-SDI and HDMI options, form 1-channel to 8-channel.

Works with:

  • hudl Sportscode

  • Catapult Sports

  • Any streaming playback client capable of the supported protocols.

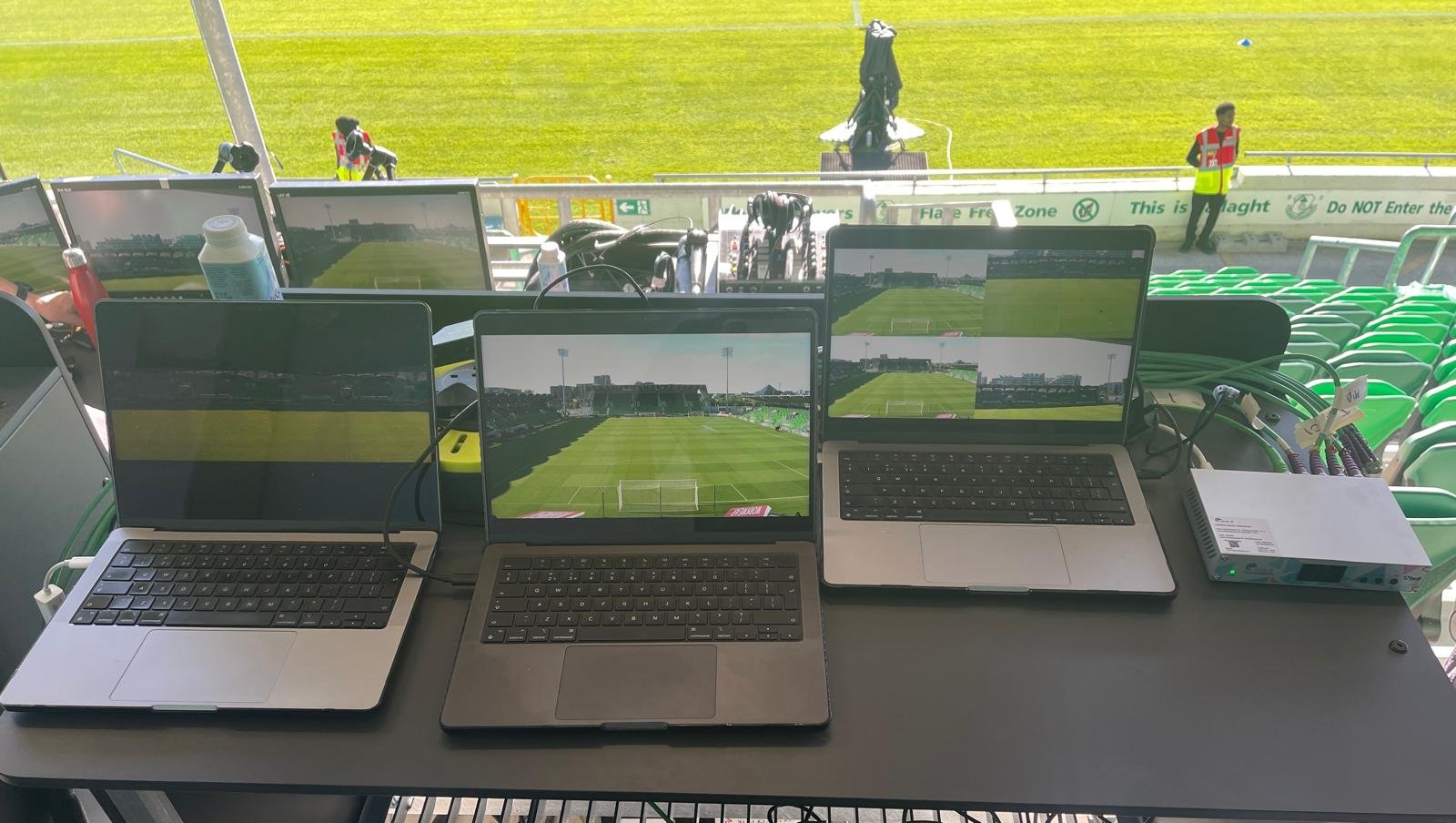

Used by Sports Performance Analysts and Coaching staff

remote OB.png

Remote Broadcast

Traverse multi-camera, multi-source content over a variety of network classes, from local LAN to 3G/4G and 5G cellular. Support for the latest robust transport protocols, such as SRT, ZIXI* and RIST*. 4-channel and 8-channel units have in built fibre optic interface and built in IP routing for remote support and remote stream access. Encoding and Decoding solutions available for SDI/HDMI end-to-end pair.

In partnership with Geolinks Broadcast Networks, we can offer a turn-key and guaranteed delivery solution.

Works with:

  • vMix

  • OBS

  • Interoperable with most other brand hardware encoders, or decoders.

    *RIST and Zixi available through future release.

Used by Outside Broadcast and Live Events

Products




Purchase and rental options are available for selected products. Rental options include full-service support, with remote configuration and assistance. Purchased products come with a full 12-month warranty on build and materials.





encoders



4/8 Channel SDI multiEncoder

4 or 8 channel optioned 3G/HD/SD-SDI encoding. M-JPEG, H.264 and H.265 HEVC ready at multiple concurrent bit rates and resolutions and supporting a number of transport protocols. The MultEncoder unit has inbuilt routing capability enabling direct connection to wide area networks and VPN via both fibre optic and RJ45 ports. Can directly power any supported LAN switch/router via PoE.

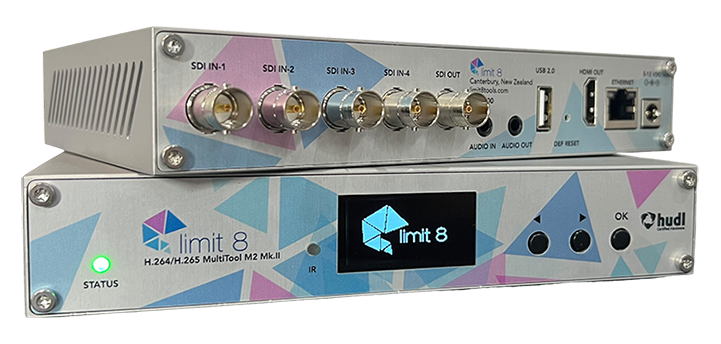

NEW M2/M4 MultiTool series

New and improved M2 Mk.II 2ch HDMI/SDI encoder and all new M4 4ch SDI encoder at a fraction of size.

H.264 and H.265 HEVC ready at multiple concurrent bitrates and resolutions and supporting a number of transport protocols.

Optional internal media storage, up to 2TB. Also offers additional functions, such as direct USB record and backup from any network source. Dual decode function to SDI/HDMI out and 3.5mm line audio, handy for extracting referee mic feed from the broadcast SDI source.

IP Camera PTZ control and re-encode.

1 channel HDMI multitool

1ch of HDMI encode.

H.264 and H.265 HEVC ready at multiple concurrent bitrates and resolutions and supporting a number of transport protocols.

Also offers additional functions, such as direct USB record and backup from any network source. Decode function to both HDMI out and 3.5mm line audio, handy for extracting referee mic feed from the broadcast SDI via the match day MultiEncoder source.



60Ghz PtP (point-to-point) links

60Ghz wireless link solution.

Effortlessly extend your network wirelessly and without stadium interference.

Full wire-like 1Gb network speeds. Send as many angles as you like from the gantry to the sideline area. Or add another camera angle to your broadcast stack, such as reverse end-on / tactical.

Sold as a pair with Magic-Clamp mounting accessories.

About limit8tools



We offer a range of high-quality, mission critical and rugged video encode/decode products.

Accompanied with turn-key support and the ability to customise any product to any number of inputs and outputs, in any of the supported formats. If a product, or solution is not listed, contact us, we are happy to tailor a hardware solution that fits your requirement.
